Migrate from Snowflake to TiDB Cloud Lake

Capabilities: Full Load

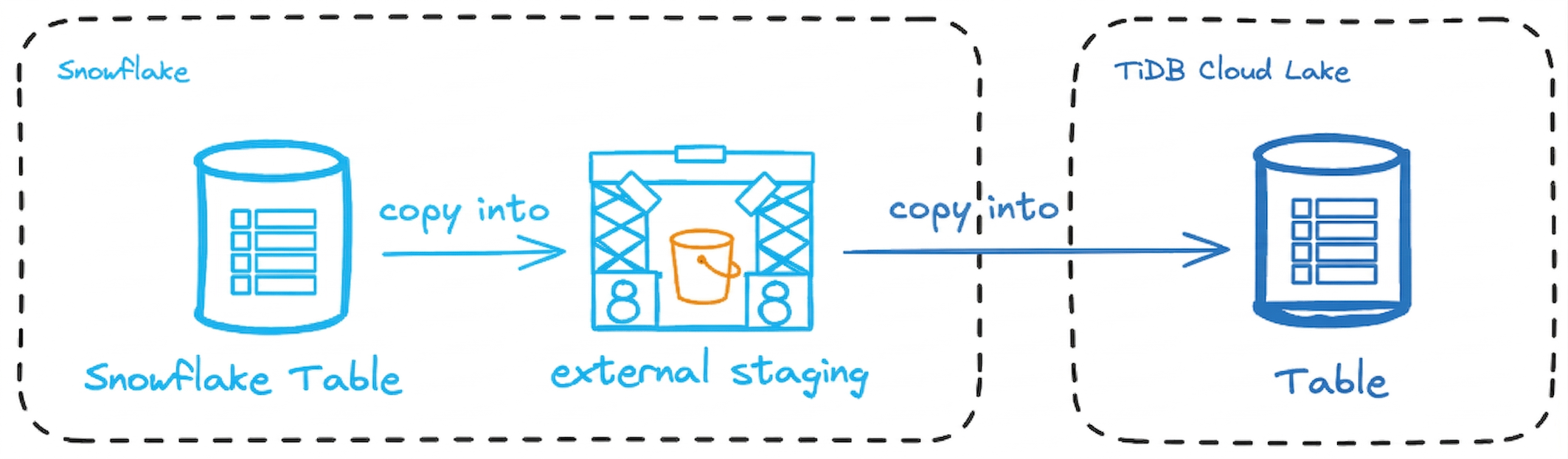

This tutorial walks you through the process of migrating your data from Snowflake to TiDB Cloud Lake. The migration involves exporting data from Snowflake to an Amazon S3 bucket and then loading it into TiDB Cloud Lake. The process is broken down into three main steps:

In this tutorial, we'll walk you through the process of exporting data from Snowflake in Parquet format to an Amazon S3 bucket, and then loading it into TiDB Cloud Lake.

Before You Start

Before you start, ensure you have the following prerequisites in place:

• Amazon S3 Bucket: An S3 bucket where your exported data will be stored, along with the required permissions for uploading files. Learn how to create an S3 bucket. In this tutorial, we use s3://lake-doc/snowflake/ as the location for staging the exported data.
• AWS Credentials: AWS Access Key ID and Secret Access Key with sufficient permissions for accessing the S3 bucket. Manage your AWS credentials.
• Permissions to Manage IAM Roles and Policies: Ensure you have the necessary permissions to create and manage IAM roles and policies, which are required to configure access between Snowflake and Amazon S3. Learn about IAM roles and policies.

Step 1: Configuring Snowflake Storage Integration for Amazon S3

In this step, we'll configure Snowflake to access Amazon S3 using IAM roles. First, we'll create an IAM role, and then use that role to establish a Snowflake Storage Integration for secure data access.

1. Sign in to the AWS Management Console, then create a policy on IAM > Policies with the following JSON code:

   {
     "Version": "2012-10-17",
     "Statement": [
       {
         "Effect": "Allow",
         "Action": [
           "s3:PutObject",
           "s3:GetObject",
           "s3:GetObjectVersion",
           "s3:DeleteObject",
           "s3:DeleteObjectVersion"
         ],
         "Resource": "arn:aws:s3:::lake-doc/snowflake/*"
       },
       {
         "Effect": "Allow",
         "Action": ["s3:ListBucket", "s3:GetBucketLocation"],
         "Resource": "arn:aws:s3:::lake-doc",
         "Condition": {
           "StringLike": {
             "s3:prefix": ["snowflake/*"]
           }
         }
       }
     ]
   }


   This policy applies to the S3 bucket named lake-doc and specifically to the snowflake folder within that bucket.

   • s3:PutObject, s3:GetObject, s3:GetObjectVersion, s3:DeleteObject, s3:DeleteObjectVersion: Allows operations on objects within the snowflake folder (e.g., s3://lake-doc/snowflake/). You can upload, read, and delete objects in this folder.
   • s3:ListBucket, s3:GetBucketLocation: Allows listing the contents of the lake-doc bucket and retrieving its location. The Condition element ensures that listing is restricted to objects within the snowflake folder.

2. Create a role named lake-doc-role on IAM > Roles and attach the policy we created.

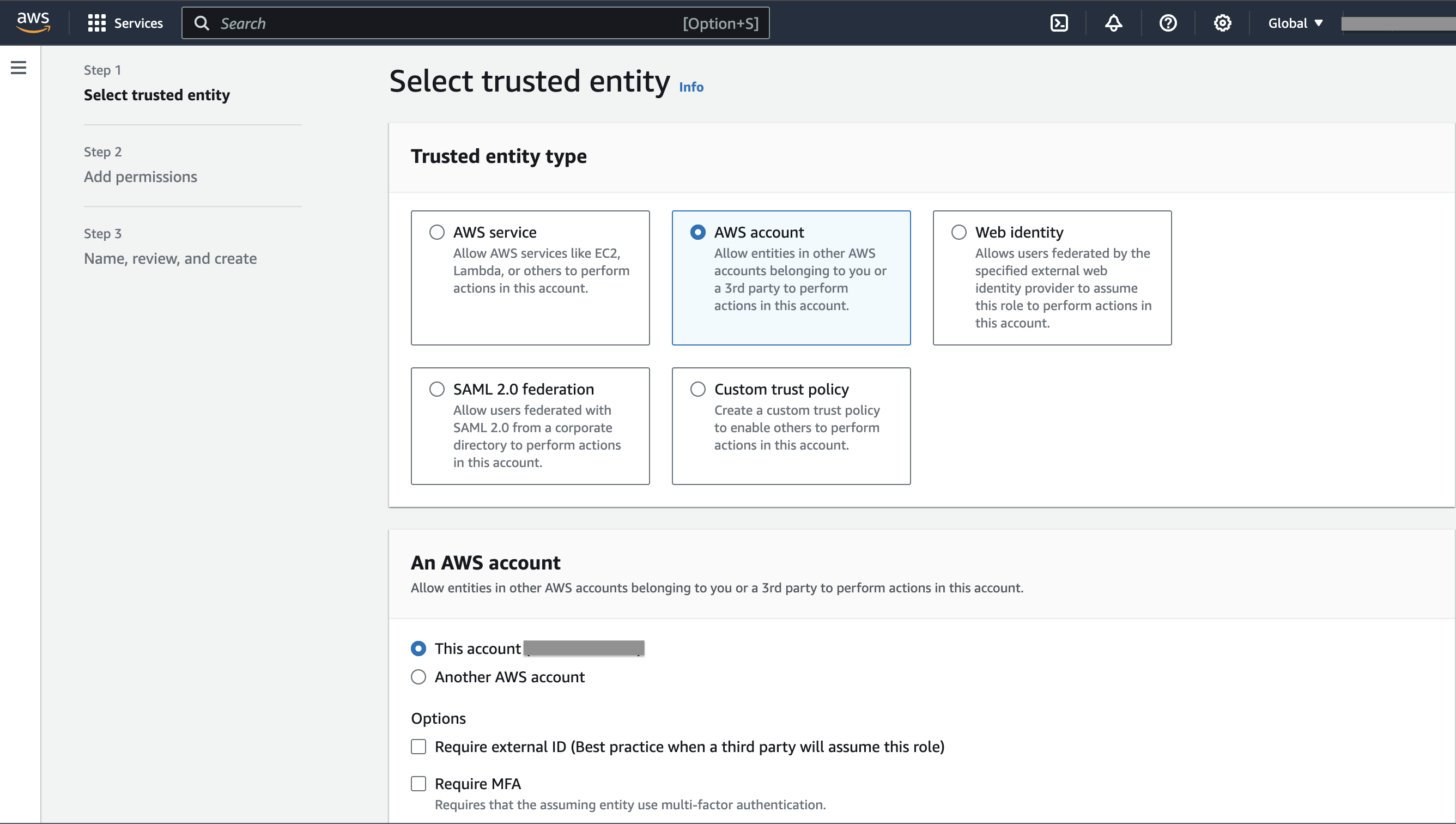

   • In the first step of creating the role, select AWS account for Trusted entity type, and This account (xxxxx) for An AWS account.

   • After the role is created, copy and save the role ARN in a secure location, for example, arn:aws:iam::123456789012:role/lake-doc-role.
   • We'll update the Trust Relationships for the role later, after we obtain the IAM user ARN for the Snowflake account.

3. Open a SQL worksheet in Snowflake and create a storage integration named my_s3_integration using the role ARN.

   CREATE OR REPLACE STORAGE INTEGRATION my_s3_integration
     TYPE = EXTERNAL_STAGE
     STORAGE_PROVIDER = 'S3'
     STORAGE_AWS_ROLE_ARN = 'arn:aws:iam::123456789012:role/lake-doc-role'
     STORAGE_ALLOWED_LOCATIONS = ('s3://lake-doc/snowflake/')
     ENABLED = TRUE;


4. Show the storage integration details and obtain the value for the STORAGE_AWS_IAM_USER_ARN property in the result, for example, arn:aws:iam::123456789012:user/example. We'll use this value to update the Trust Relationships for the role lake-doc-role in the next step.

   DESCRIBE INTEGRATION my_s3_integration;


5. Go back to the AWS Management Console, open the role lake-doc-role, and navigate to Trust relationships > Edit trust policy. Copy the following code into the editor:

   {
     "Version": "2012-10-17",
     "Statement": [
       {
         "Effect": "Allow",
         "Principal": {
           "AWS": "arn:aws:iam::123456789012:user/example"
         },
         "Action": "sts:AssumeRole"
       }
     ]
   }


   The ARN arn:aws:iam::123456789012:user/example is the IAM user ARN for the Snowflake account that we obtained in the previous step.

Step 2: Preparing and Exporting Data to Amazon S3

1. Create an external stage in Snowflake with the Snowflake storage integration my_s3_integration:

   CREATE OR REPLACE STAGE my_external_stage
       URL = 's3://lake-doc/snowflake/'
       STORAGE_INTEGRATION = my_s3_integration
       FILE_FORMAT = (TYPE = 'PARQUET');


   URL = 's3://lake-doc/snowflake/' specifies the S3 bucket and folder where the data will be staged. The path s3://lake-doc/snowflake/ corresponds to the S3 bucket lake-doc and the folder snowflake within that bucket.

2. Prepare some data to export.

   CREATE DATABASE doc;
   USE DATABASE doc;

   CREATE TABLE my_table (
       id INT,
       name STRING,
       age INT
   );

   INSERT INTO my_table (id, name, age) VALUES
   (1, 'Alice', 30),
   (2, 'Bob', 25),
   (3, 'Charlie', 35);


3. Export the table data to the external stage using COPY INTO:

   COPY INTO @my_external_stage/my_table_data_
   FROM my_table
   FILE_FORMAT = (TYPE = 'PARQUET') HEADER=true;


   If you open the lake-doc bucket, you will see a Parquet file in the snowflake folder.

Step 3: Loading Data into TiDB Cloud Lake

1. Create the target table in TiDB Cloud Lake:

   CREATE DATABASE doc;
   USE DATABASE doc;

   CREATE TABLE my_target_table (
       id INT,
       name STRING,
       age INT
   );


2. Load the exported data in the bucket using COPY INTO:

   COPY INTO my_target_table
   FROM 's3://lake-doc/snowflake'
   CONNECTION = (
       ACCESS_KEY_ID = '<your-access-key-id>',
       SECRET_ACCESS_KEY = '<your-secret-access-key>'
   )
   PATTERN = '.*[.]parquet'
   FILE_FORMAT = (
       TYPE = 'PARQUET'
   );


3. Verify the loaded data:

SELECT * FROM my_target_table;

┌──────────────────────────────────────────────────────┐
│        id       │       name       │       age       │
├─────────────────┼──────────────────┼─────────────────┤
│               1 │ Alice            │              30 │
│               2 │ Bob              │              25 │
│               3 │ Charlie          │              35 │
└──────────────────────────────────────────────────────┘
