FeiShuBot

This page describes how to create a FeiShuBot data source. This data source stores a FeiShu bot webhook and message template and is typically used for task failure notifications.

Use Cases

• Send notifications to a FeiShu group when a task run fails
• Reuse the same bot configuration and message template across multiple tasks
• Manage the notification endpoint and message format centrally

Create FeiShuBot

1. Navigate to Data > Data Sources and click Create Data Source.

2. Select FeiShuBot as the service type, then fill in the fields:

   Field	Required	Description
   Name	Yes	A descriptive name for this data source. Only letters, numbers, and underscores are supported
   URL	Yes	Custom FeiShu bot webhook URL
   Warehouse	Yes	The warehouse used to create the NOTIFICATION INTEGRATION
   Payload	Yes	Message payload type. Currently, only Task Error is supported
   Template	Yes	Custom message template

3. Click Test Connectivity to validate the configuration. If the test succeeds, click OK to save the data source.

Usage

FeiShuBot can be used with the SQL Task ERROR_INTEGRATION property, or referenced from the console Task Flow UI through Error Notification.

Set a SQL Task Property

Set the Task ERROR_INTEGRATION property. In the following example, the data source name is test_1:

CREATE TASK my_daily_task
   WAREHOUSE = 'compute_wh'
   SCHEDULE = USING CRON '0 0 9 * * *' 'America/Los_Angeles'
   COMMENT = 'Daily summary task'
   ERROR_INTEGRATION = 'test_1'
AS
   INSERT INTO summary_table SELECT * FROM source_table;

Configure It in the Task Flow UI

On the create or edit page, set Error Notification to the corresponding FeiShuBot data source.

Customize the Task Error Template

Default template:

**[ALERT] {{ .MessageType }} - {{ .TaskName }}**
---
taskId: {{ .TaskId }}
taskName: {{ .TaskName }}
tenantId: {{ .TenantId }}

Messages: {{ range .Messages }}
- runId: {{ .RunId }}
  queryId: {{ .QueryId }}
  error: {{ .ErrorKind }} ({{ .ErrorCode }})
  message: {{ .ErrorMessage }} {{ end }}

---
{{ .Timestamp }}

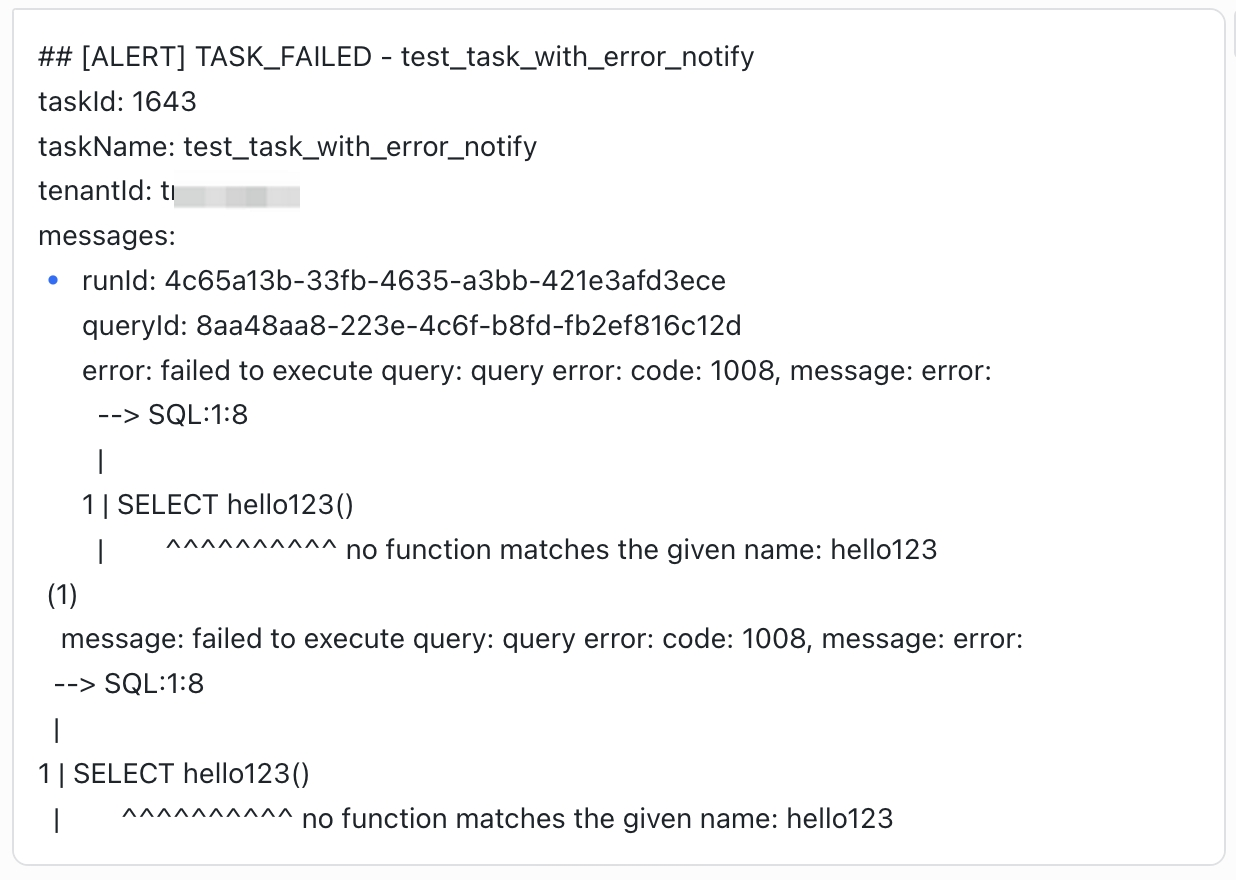

A received message looks similar to this:

Custom templates support:

• Markdown content
• Golang template syntax

The following variables are available:

type ErrorIntegrationPayload struct {
        Version      string          `json:"version"`
        MessageId    string          `json:"messageId"`
        MessageType  string          `json:"messageType"`
        Timestamp    time.Time       `json:"timestamp"`
        TenantId     string          `json:"tenantId"`
        TaskName     string          `json:"taskName"`
        TaskId       string          `json:"taskId"`
        RootTaskName string          `json:"rootTaskName"`
        RootTaskId   string          `json:"rootTaskId"`
        Messages     []*ErrorMessage `json:"messages"`
}

type ErrorMessage struct {
        RunId          string     `json:"runId"`
        ScheduledTime  time.Time  `json:"scheduledTime"`
        QueryStartTime *time.Time `json:"queryStartTime"`
        CompletedTime  *time.Time `json:"completedTime"`
        QueryId        string     `json:"queryId"`
        ErrorKind      string     `json:"errorKind"`
        ErrorCode      string     `json:"errorCode"`
        ErrorMessage   string     `json:"errorMessage"`
}

Notes

FeiShuBot is a notification-oriented data source. It is not used to load business data into TiDB Cloud Lake.
