EXPLAIN ANALYZE GRAPHICAL

Analyzes query performance with an interactive visual representation in your browser. Available exclusively in LakeSQL v0.22.2+.

Syntax

EXPLAIN ANALYZE GRAPHICAL <statement>

Configuration

Add to your LakeSQL config file ~/.config/lakesql/config.toml:

[server]
bind_address = "127.0.0.1"
auto_open_browser = true

Example

EXPLAIN ANALYZE GRAPHICAL SELECT l_returnflag, COUNT(*)
FROM lineitem
WHERE l_shipdate <= '1998-09-01'
GROUP BY l_returnflag;

Output:

View graphical online: http://127.0.0.1:8080?perf_id=1

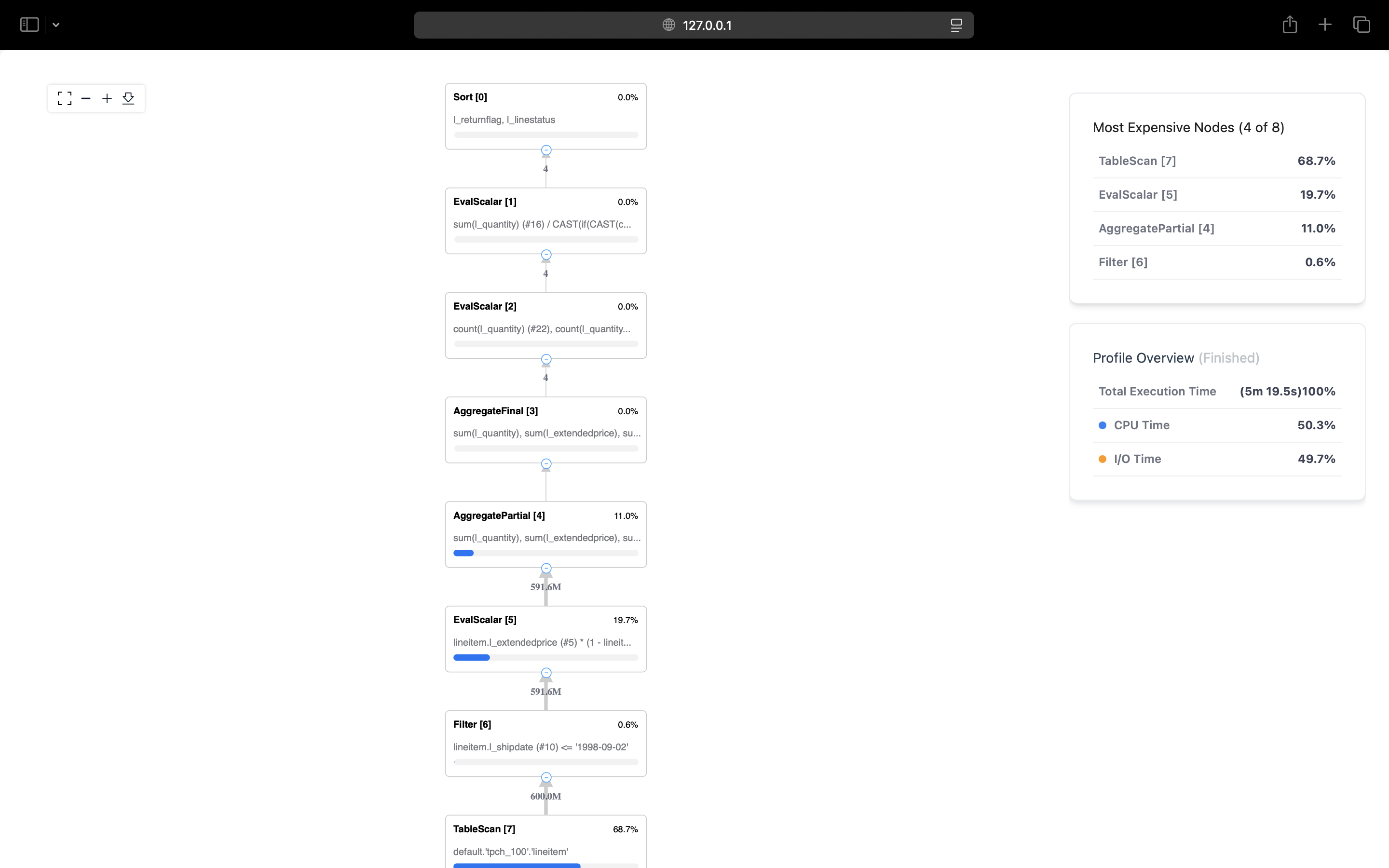

Opens an interactive view showing execution plan, operator runtimes, and data flow.
