Connect to TiDB Cloud Serverless with Looker Studio

TiDB is a MySQL-compatible database, TiDB Cloud Serverless is a fully managed TiDB offering, and Looker Studio is a free web-based BI tool that can visualize data from various sources.

In this tutorial, you can learn how to connect to your TiDB Cloud Serverless cluster with Looker Studio.

Prerequisites

To complete this tutorial, you need:

• A Google account
• A TiDB Cloud Serverless cluster

If you don't have a TiDB Cloud Serverless cluster, you can create one as follows:

• Create a TiDB Cloud Serverless cluster

Step 1. Import a dataset

You can import the S&P 500 dataset provided in the interactive tutorial of TiDB Cloud Serverless.

1. Navigate to the Clusters page, and click ? in the lower-right corner. A Help dialog is displayed.

2. In the dialog, click Interactive Tutorials, and then click S&P 500 Analysis.

3. Select your TiDB Cloud Serverless cluster, and then click Import Dataset to import the S&P 500 dataset to your cluster.

4. After the import status changes to IMPORTED, click Exit Tutorial to close this dialog.

If you encounter any issues during import, you can cancel this import task as follows:

1. On the Clusters page, click the name of your TiDB Cloud Serverless cluster to go to its overview page.
2. In the left navigation pane, click Import.
3. Find the import task named sp500-insight, click ... in the Action column, and then click Cancel.

Step 2. Get the connection information for your cluster

1. Navigate to the Clusters page, and then click the name of your target cluster to go to its overview page.

2. Click Connect in the upper-right corner. A connection dialog is displayed.

3. In the connection dialog, set Connect With to General, and then click Generate Password to create a random password.

   Tip

   If you have created a password before, use the original password or click Reset Password to generate a new one.

4. Download the CA cert.

   Tip

   TiDB Cloud Serverless requires a secure TLS connection between the client and the cluster, so you need this CA cert for connection settings in Looker Studio.

Step 3. Connect to your TiDB cluster with Looker Studio

1. Log into Looker Studio, and then click Create > Report in the left navigation pane.

2. On the displayed page, search and select the MySQL connector, and then click AUTHORIZE.

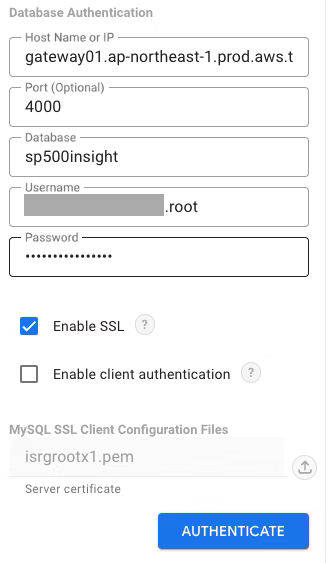

3. In the BASIC setting pane, configure the connection parameters.

   • Host Name or IP: enter the HOST parameter from the TiDB Cloud Serverless connection dialog.
   • Port(Optional): enter the PORT parameter from the TiDB Cloud Serverless connection dialog.
   • Database: enter the database you want to connect to. For this tutorial, enter sp500insight.
   • Username: enter the USERNAME parameter from the TiDB Cloud Serverless connection dialog.
   • Password: enter the PASSWORD parameter from the TiDB Cloud Serverless connection dialog.
   • Enable SSL: select this option, and then click the upload icon to the right of MySQL SSL Client Configuration Files to upload the CA file downloaded from Step 2.



4. Click AUTHENTICATE.

If the authentication succeeds, you can see tables in the database.

Step 4. Create a simple chart

Now, you can use the TiDB cluster as a data source and create a simple chart with data.

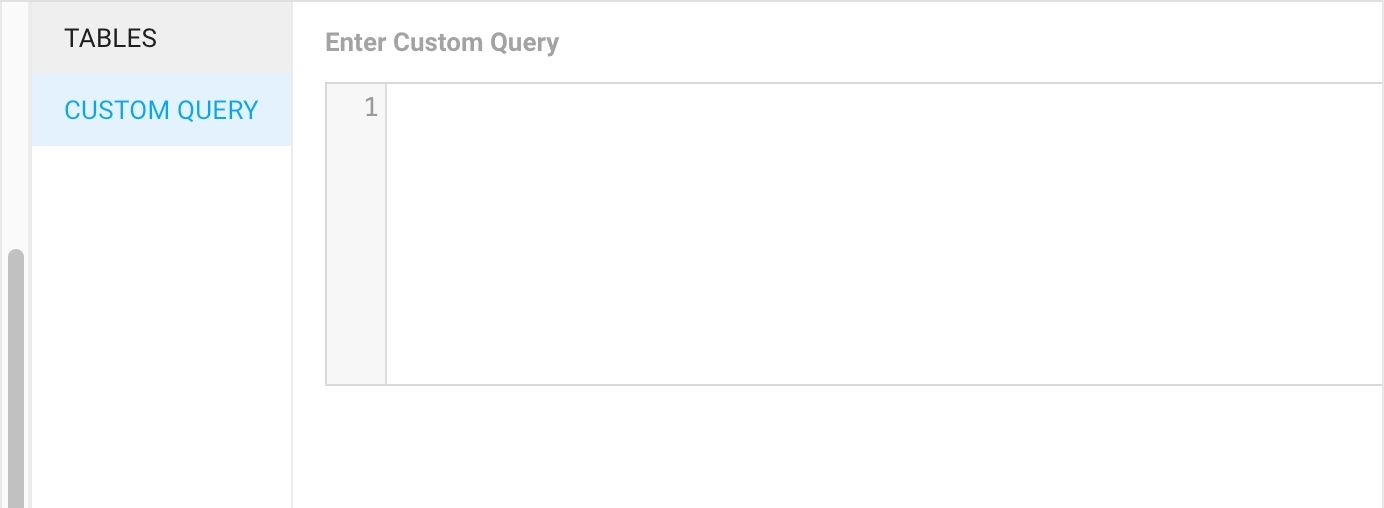

1. In the right pane, click CUSTOM QUERY.



2. Copy the following code to the Enter Custom Query area, and then click Add in the lower-right corner.

   SELECT sector,
       COUNT(*)                                                                      AS companies,
       ROW_NUMBER() OVER (ORDER BY COUNT(*) DESC )                                   AS companies_ranking,
       SUM(market_cap)                                                               AS total_market_cap,
       ROW_NUMBER() OVER (ORDER BY SUM(market_cap) DESC )                            AS total_market_cap_ranking,
       SUM(revenue_growth * weight) / SUM(weight)                                    AS avg_revenue_growth,
       ROW_NUMBER() OVER (ORDER BY SUM(revenue_growth * weight) / SUM(weight) DESC ) AS avg_revenue_growth_ranking
   FROM companies
       LEFT JOIN index_compositions ic ON companies.stock_symbol = ic.stock_symbol
   GROUP BY sector
   ORDER BY 5 ASC;


   If you see the You are about to add data to this report dialog, click ADD TO REPORT. Then, a table is displayed in the report.

3. In the toolbar of the report, click Add a chart, and then select Combo chart in the Line category.

4. In the Chart settings pane on the right, configure the following parameters:

   • In the SETUP Tab:
     • Dimension: sector.
     • Metric: companies and total_market_cap.
   • In the STYLE Tab:
     • Series #1: select the Line option and the Right axis.
     • Series #2: select the Bars option and the Left axis.
   • Leave other fields as defaults.

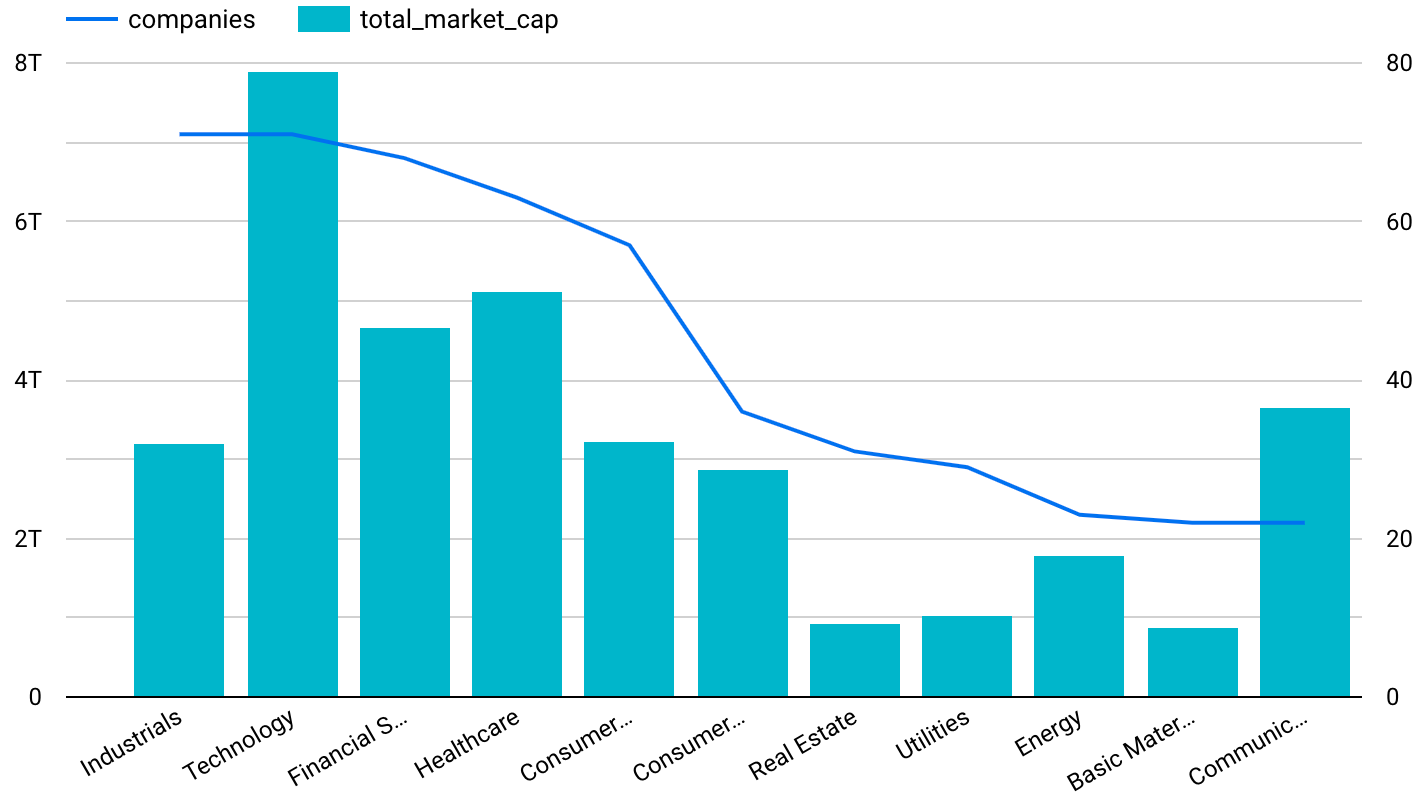

Then, you can see a combo chart similar as follows:

Next steps

• Learn more usage of Looker Studio from Looker Studio Help.
• Learn the best practices for TiDB application development with the chapters in the Developer guide, such as Insert data, Update data, Delete data, Single table reading, Transactions, and SQL performance optimization.
• Learn through the professional TiDB developer courses and earn TiDB certifications after passing the exam.
