Image Search Example

This example shows how to build an image search app by combining TiDB vector search capabilities with multimodal embedding models.

With just a few lines of code, you can create a search system that understands both text and images.

Text-to-image search: Find pet photos by describing what you want in natural language, such as "fluffy orange cat"
Image-to-image search: Upload a photo to find visually similar pets by breed, color, pose, and more

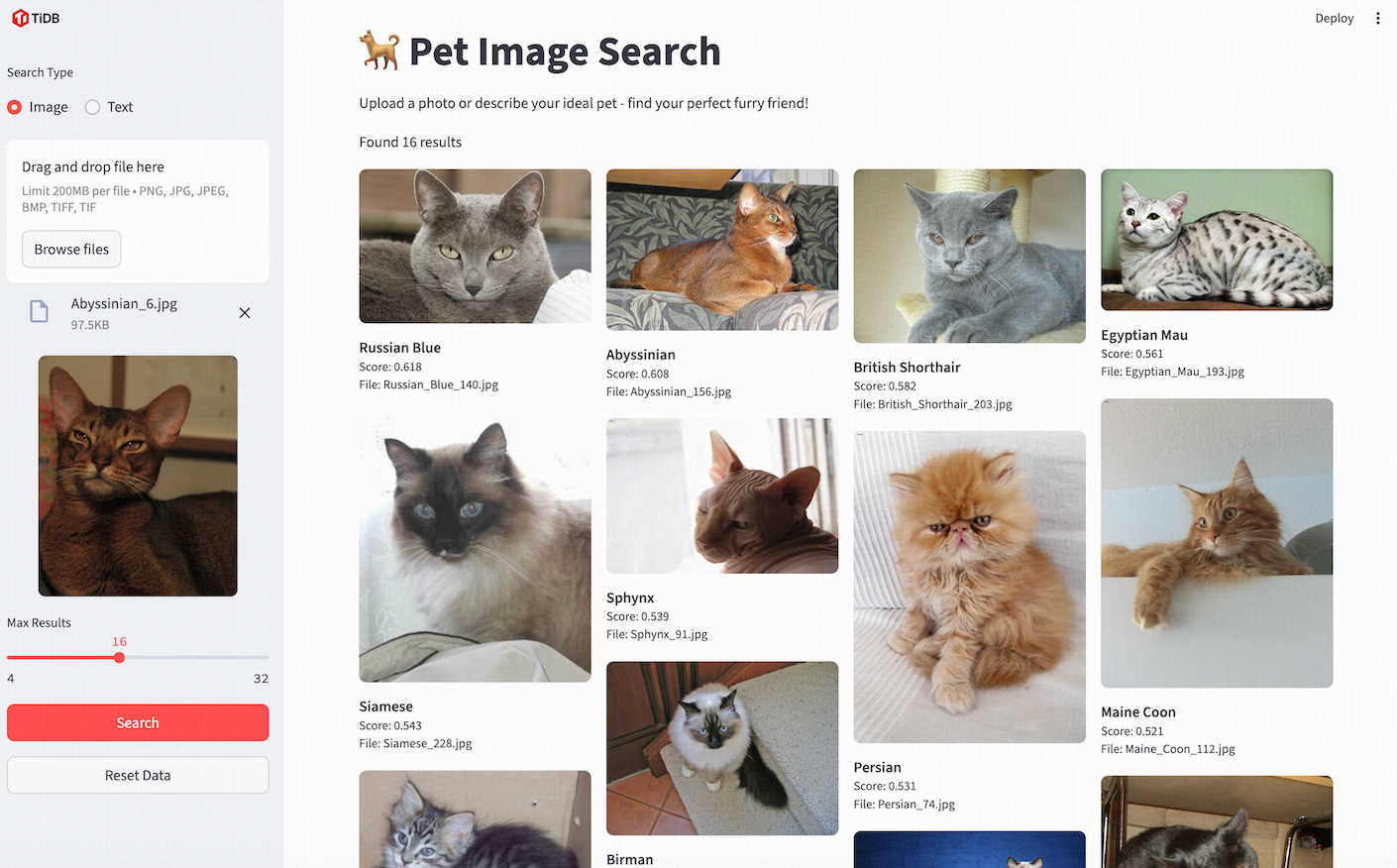

Pet image search via multimodal embeddings

Prerequisites

Before you begin, ensure you have the following:

Python (>=3.10): Install Python 3.10 or a later version.
A TiDB Cloud Starter cluster: You can create a free TiDB cluster on TiDB Cloud.
Jina AI API key: You can get a free API key from Jina AI Embeddings.

How to run

Step 1. Clone the `pytidb` repository

pytidb is the official Python SDK for TiDB, designed to help developers build AI applications efficiently.

git clone https://github.com/pingcap/pytidb.git
cd pytidb/examples/image_search/

Step 2. Install the required packages

python -m venv .venv
source .venv/bin/activate  # Windows: .venv\Scripts\activate
pip install -r reqs.txt

Step 3. Set environment variables

In the TiDB Cloud console, navigate to the Clusters page, and then click the name of your target cluster to go to its overview page.
Click Connect in the upper-right corner. A connection dialog is displayed, with connection parameters listed.
Set environment variables according to the connection parameters as follows:

cat > .env <<EOF
TIDB_HOST={gateway-region}.prod.aws.tidbcloud.com
TIDB_PORT=4000
TIDB_USERNAME={prefix}.root
TIDB_PASSWORD={password}
TIDB_DATABASE=test

JINA_AI_API_KEY={your-jina-ai-api-key}
EOF

Step 4. Download and extract the dataset

This demo uses the Oxford Pets dataset to load pet images into the database for search.

For Linux/MacOS:

# Download the dataset
curl -L -o oxford_pets.tar.gz "https://thor.robots.ox.ac.uk/~vgg/data/pets/images.tar.gz"

# Extract the dataset
mkdir -p oxford_pets
tar -xzf oxford_pets.tar.gz -C oxford_pets

Step 5. Run the app

streamlit run app.py

Open your browser and visit http://localhost:8501.

Step 6. Load data

In the sample app, you can click the Load Sample Data button to load some sample data to the database.

Or if you want to load all the data in the Oxford Pets dataset, click the Load All Data button.

Step 7. Search

Select the Search type in the sidebar.
Input a text description of the pet you're looking for, or upload a photo of a dog or cat.
Click the Search button.

Source Code: View on GitHub
